真空箱氦检回收

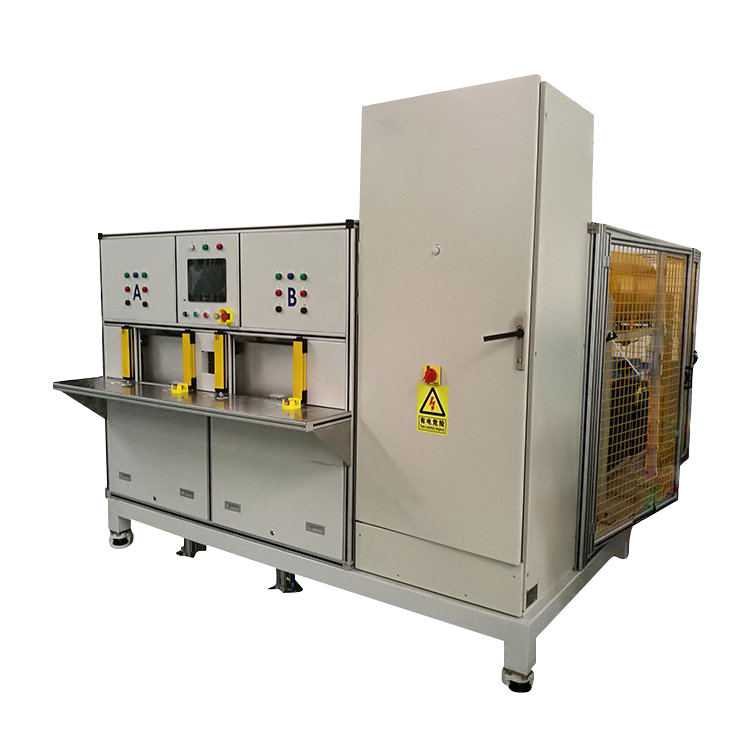

真空箱氦检漏回收系统
产品简介:

氦气循环使用,降低成本

检测工件整体漏率,检漏精度高

系统成熟可靠,布局合理




  • 产品概述
  • 性能特点
  • 技术参数
  • 简易操作

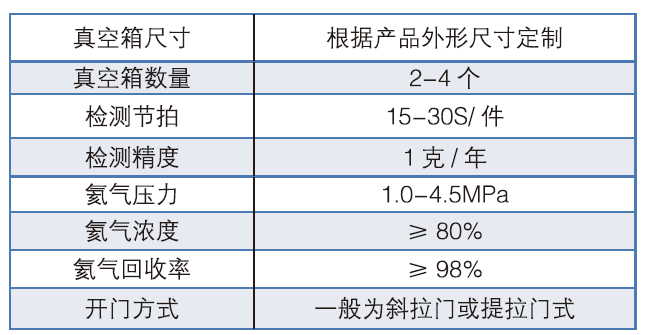

技术指标Qualification



性能介绍Performance description

本设备适用于对高压开关柜进行真空箱法氦质谱检漏:

设备配置工件运输系统, 可自由进出真空箱;

真空箱体采用全不锈钢结构,箱体内表面经过特殊处理,氦吸附率小;

可精确控制被检件外压差,确保工件免受损伤;

配置氦气回收系统,氦气循环使用.降低使用成本。

The equipment is suitable for high-voltage switchgear vacuum box helium mass spectrometry leak detection.

The equipment is equipped with the workpiece transportation system, which can enter and leave the vacuum box freely.

The vacuum box adopts all stainless steel structure, the inner surface of the box is specially treated, and the adsorption rate ofhelium is small.

It can accurately control the internal and external pressure difference of the inspected parts to ensure that the workpiece is free from damage.

Equipped with helium recovery system, helium recycling,reduce the cost of use.
