氦质谱检漏仪

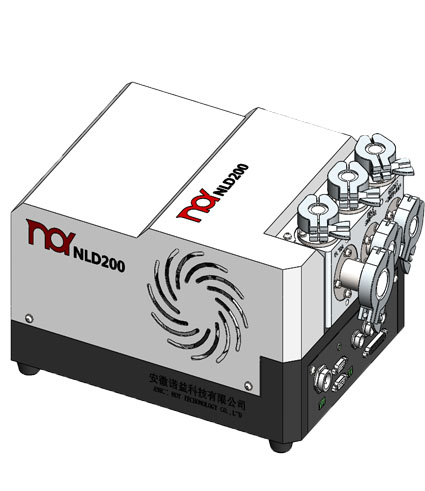

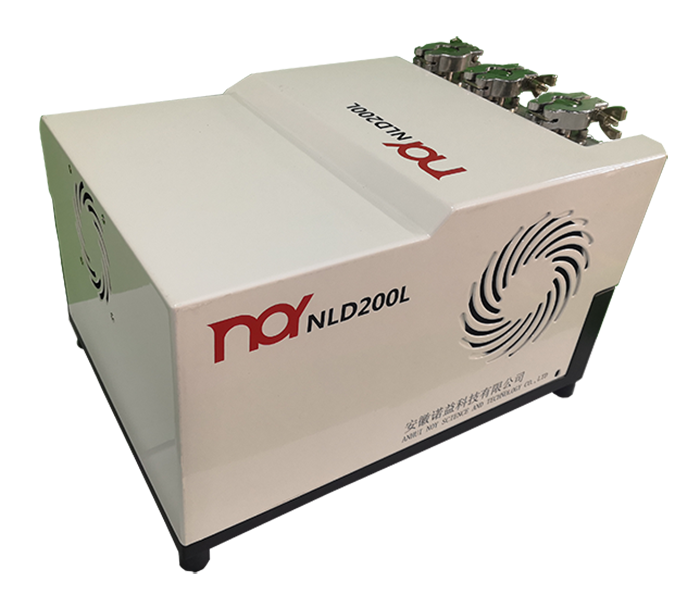

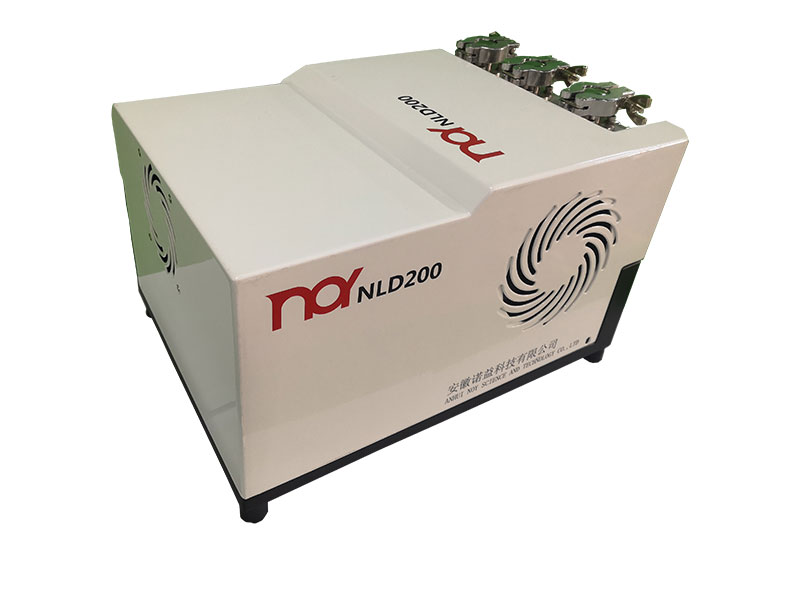

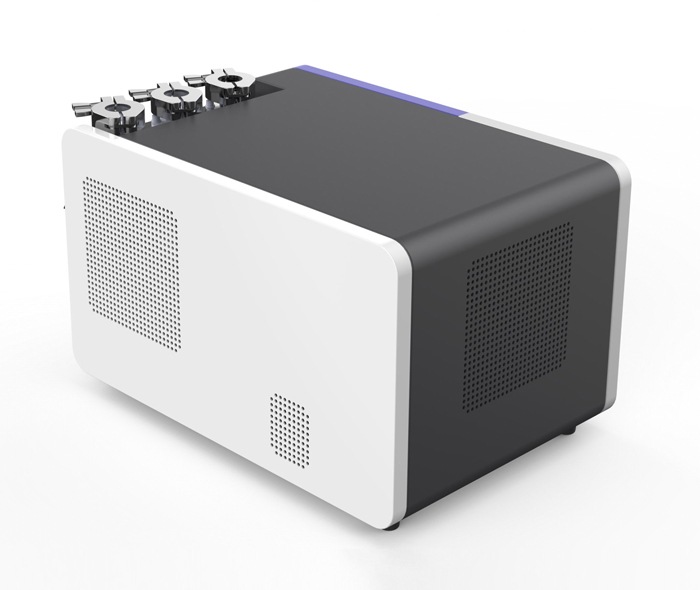

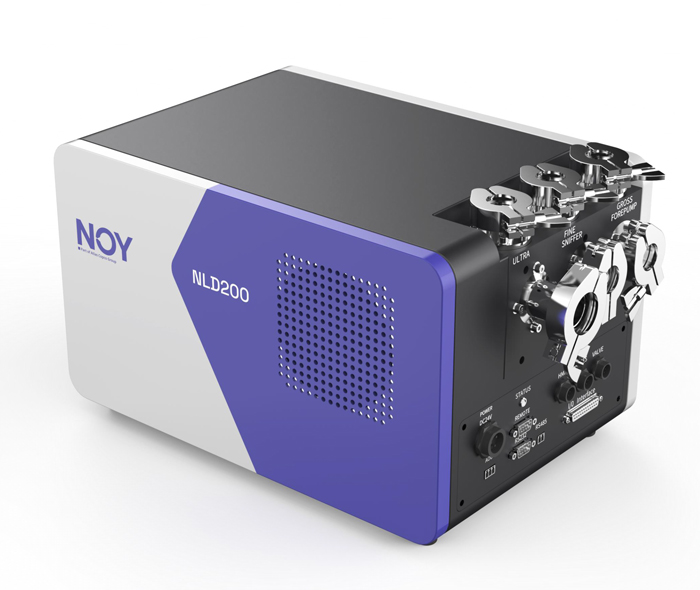

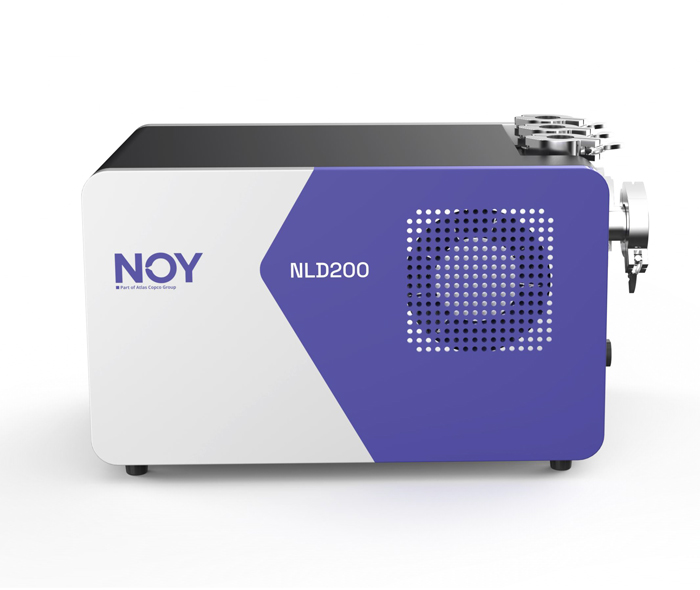

NLD 200模块检漏仪
产品简介:
NLD200模块检漏仪,小体积可灵活的配合真空系统、多种气路组合,可适用于多种检测要求。
  • 产品概述
  • 性能特点
  • 技术参数
  • 简易操作

NLD200模块检漏仪是一款模块组合式氦质谱检漏仪,小体积可灵活的配合真空系统、多种气路组合,可适用于多种检测要求。

具有启动时间短、检漏速度快、灵敏度高、清氦能力强、无污染物排出等特点。

紧凑的结构设计,便于按照客户的需要,集成到检漏系统中

双铱带离子源,抗氧化能力强且使用寿命长。


NLD200 module leak detector is a modular type leak detector,small volume can be flexible with the vacuum system, a variety of air combination, can be applied to a variety of detection requirements.

It has the characteristics of short start time, fast leak detection speed, high sensitivity, strong ability to clear helium and no pollutant removal.

Compact structural design to facilitate integration into leak detection systems according to customer needs

Double iridium ion source, strong antioxidant capacity and long service life.

NLD200模块检漏仪是一款模块组合式检漏仪,小体积可灵活的配合真空系统、多种气路组合,可适用于多种检测要求。

具有启动时间短、检漏速度快、灵敏度高、清氦能力强、无污染物排出等特点。

紧凑的结构设计,便于按照客户的需要,集成到检漏系统中

双铱带离子源,抗氧化能力强且使用寿命长。


NLD200 module leak detector is a modular type leak detector,small volume can be flexible with the vacuum system, a variety of air combination, can be applied to a variety of detection requirements.

It has the characteristics of short start time, fast leak detection speed, high sensitivity, strong ability to clear helium and no pollutant removal.

Compact structural design to facilitate integration into leak detection systems according to customer needs

Double iridium ion source, strong antioxidant capacity and long service life.

技术参数 Technical parameter

最小可检漏率

Minimum leak detection rate

3×10-13 Pa·m3/s

最大进气口压强

Maximum intake pressure

≤1500 Pa

启动时间

Start time

≤100 S

响应时间

Response time

≤0.3 S

通 讯

Communication

RS232,RS485,USB

校 准

Calibration

内部自动/外部手动

语 言

Language

中文/English

接口尺寸

Interface dimensions

DN KF25/DN KF16

电源/电压

Power / Voltage

DC24V,240W

前级泵

Backing pump

≥2.5L/S

重 量

Weight

15 Kg

尺 寸

Size

370*230*300 mm

工作环境

Work environment

温度:10-40℃ 湿度:75%

可探测气体

Detectable masses

H2,He3,He4
